Plate Flange



ASME/ANSI B16.5 PLATE FLANGES (SLIP-ON) MANUFACTURER IN INDIA

MANUFACTURER/EXPORTER OF HIGH QUALITY PLATE SLIP-ON FLANGES

CARBON, ALLOY, STAINLESS STEEL PLATE FLANGES

Metro Metals is a Dominant and Expert manufacturer of high quality ASME/ANSI/DIN standard plate flanges in India. We offer immediate delivery programs for standard size of carbon steel plate flanges and stainless steel plate flanges. Plate flanges can be manufactured as per custom size requirements of our customers.

Stainless steel plate flanges are manufactured from plated produced in accordance to the ASTM A240 and ASME SA240 standards. Plate flanges are widely accepted as an alternative to cast or forged flanges in low pressure applications because of the benefits listed below.

Advantages of Plate Flanges

  1. Free of any defects
  2. Superior grain structure compared to forged or cast products
  3. Extended service life
  4. Reduction of the normal maintenance costs

Plate flanges are most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.

Our products are widely exported to countries and regions such as the United States, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka.

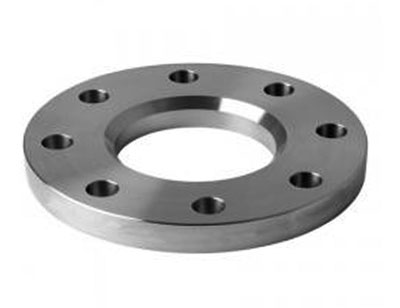

STAINLESS STEEL PLATE FLANGE

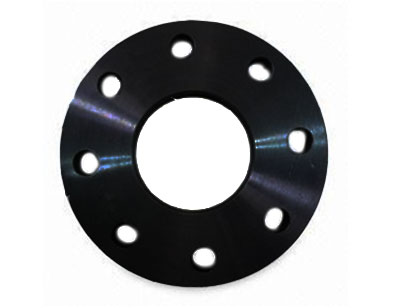

ALLOY STEEL, CARBON STEEL PLATE FLANGE



PLATE FLANGE, SLIP-ON PLATE FLANGES PRODUCTION RANGE

Size 1/2″ (15 NB) to 48″ (1200NB), Custom Sizes
Standards ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Plate Flanges ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Plate Flanges ASTM A182, A240 – F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Plate Flanges ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Plate Flanges Duplex, Super Duplex, Nickel Alloys
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services CNC Machining, Customised Flanges

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Metro Metals , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
