Sheets, Plates & Coils



We offer wide variety of industrial steel sheets, industrial steel plates, industrial stainless steel sheets, industrial stainless steel plates, which are fabricated from finest quality of raw materials. Manufactured as per the international quality and safety standards, we offer these products in different dimensions and at highly competitive prices. These products are mostly applied in construction and engineering industry.


User Industries:
Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.

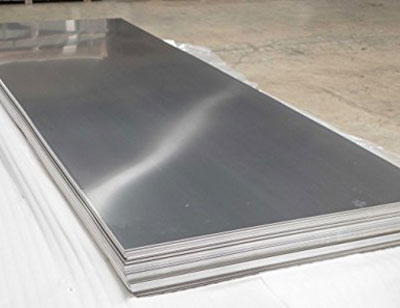

Stainless & Duplex Steel


Range :
0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s.
Stainless Steel :
ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430
Duplex Steel :
ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

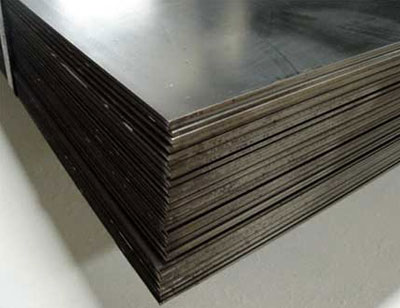

Carbon & Alloy Steel


Range :
3 mm to 100 mm thick in upto 2500 mm width upto 12500 mm length available with NACE MR 01-75s
Carbon Steel :
ASTM / ASME A 516 / 517 GR. 60 / 70 , IS 2062 , IS 2002
Alloy Steel :
ASTM / ASME A 387 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.

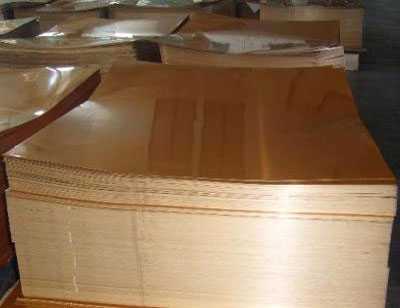

Nickel & Copper Alloy


Sheet and Plates Range :
5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s.
Nickel Alloy :
ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )

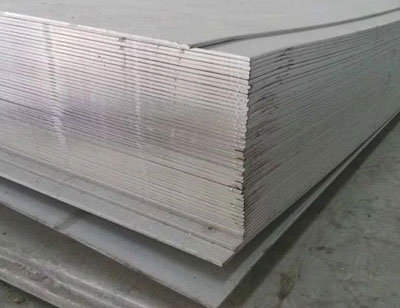

Hastelloy


Sheet and Plates Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Form:
Hastelloy Sheet
Hastelloy Coil
Hastelloy Strips
Hastelloy Plates
Hastelloy Circle
Hastelloy Ring

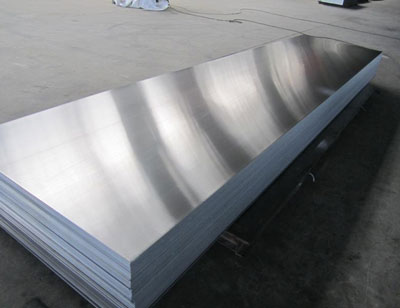

Inconel Sheet and Plates


Grades :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard : ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443

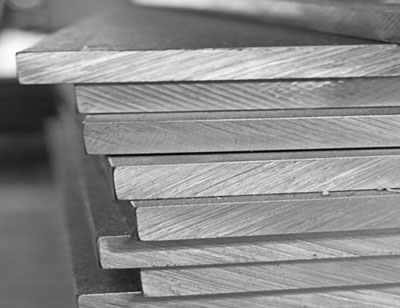

Incoloy


Sheet and Plates Grades : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Type: Seamless / Erw / Welded/ Fabricated
Standard : ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
Incoloy Sheets, PlatesThis range is used in :
Petrochemicals Plants
Oil Refineries
Fertilizers Plants
Sugar Mills
Chemical Plants
Pharmaceuticals
Textile Machinery

Monel


Sheet and Plates Grades : Monel 400, Monel k500
Type: Seamless / Erw / Welded/ Fabricated
Form: Round, Square, Rectangular, Hydraulic etc.
Length: Single Random, Double Random & Cut Length
End:
Plain End, Beveled End, Threaded
The salient features are as follows :
Hot Dipped Galvanizin Epoxy & Fbe Coating Electro Polish Draw & Expansion

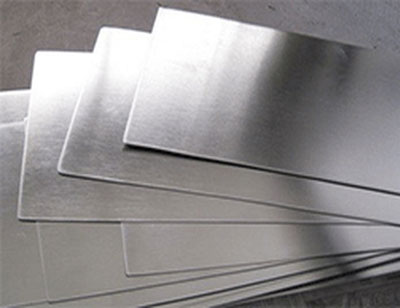

Titanium


Sheet and Plates Specifications :
1)hot and coll rolled, Gr1~Gr23
2)Thickness:0.3mm – 60mm
3)Length:6000mm
4)ASTM B265,ASTM 4911,F67,F136
Material :titanium and titanium alloys
Pure Titanium Grade : GR1, GR2, GR3, GR4
Titanium Alloy Grade : GR5 (6% Al, 4%V)
GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)
Common Specification Specification Product Form
  ASTM B265(Gr2 Sheet,Strip and Plate
  ASTM B338 Tube,Seamless and Welded
  ASTM B348(Gr2) Bars and Billets
  ASTM B861 Seamless Pipe
  ASTM B863 Wire
  ASTM F67(Gr2) Unalloyed Titanium for Surgical Implants

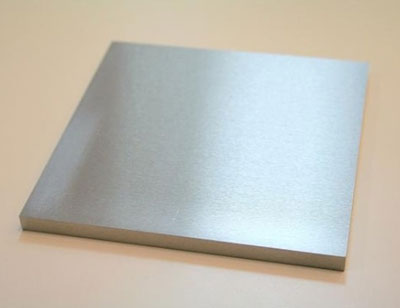

Tantalum


Specifications : tantalum sheet, tantalum plate, tantalum foil
Grade: RO5200, Ro5400,RO5252,RO5255
Standard :ASTM B708-98
Size:T0.1-10.0mm
We are factory specializing in the manufacture and export Tantalum and Niobium prodcut for more than ten years,Including foil tube ,rod,wire,sheet,plate, ,rod,strip,target and so on We can supply the best quallity and low price. Tantalum sheets, Tantalum- tungsten alloy sheets(Ta2.5W, Ta10W)
Purity : 99.95%min or 99.99%min conformity with ASTM B 708 98
Size:
Thickness (mm) Width (mm) Length (mm
Foil 0.03-0.09 30-600 100
Sheet 0.1-0.5 30- 609.6 30-1000
Board 0.5-10 50-1000 50-2000
