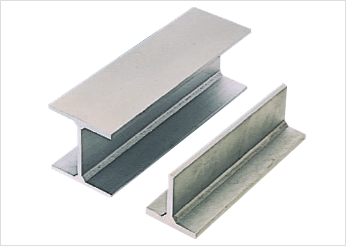

Beam


Supported standards
--
Type of steel
SUS304, SUS304L, SUS316, SUS316L, SUS304A, etc.















Characteristics of H-beams

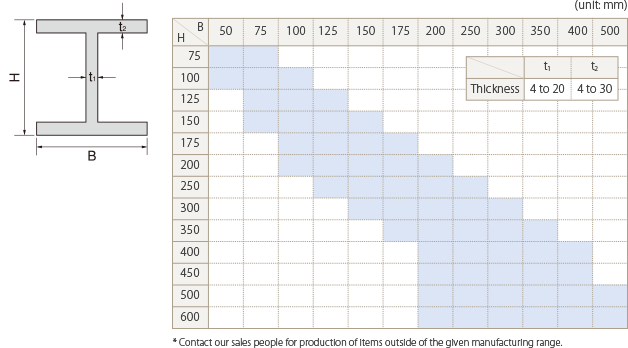

1. Product sizes

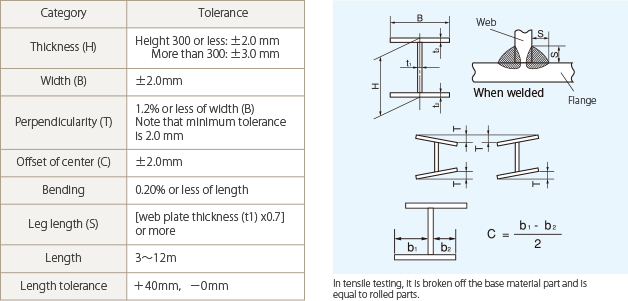

2. Product specifications

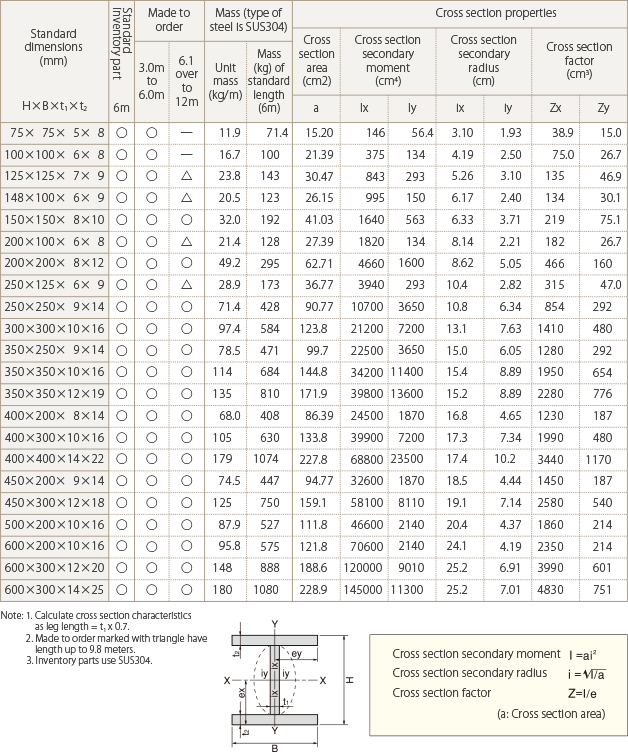

3. Standard dimensions and cross section properties (Reference)





Characteristics of T-bars

1. Product sizes

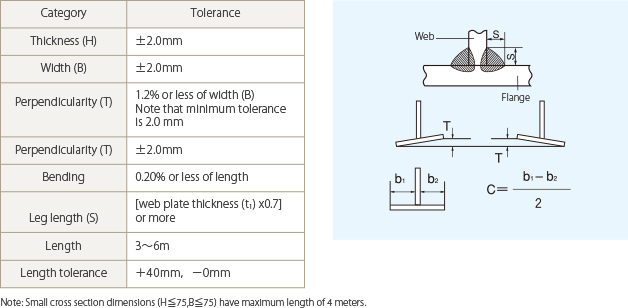

2. Product specifications

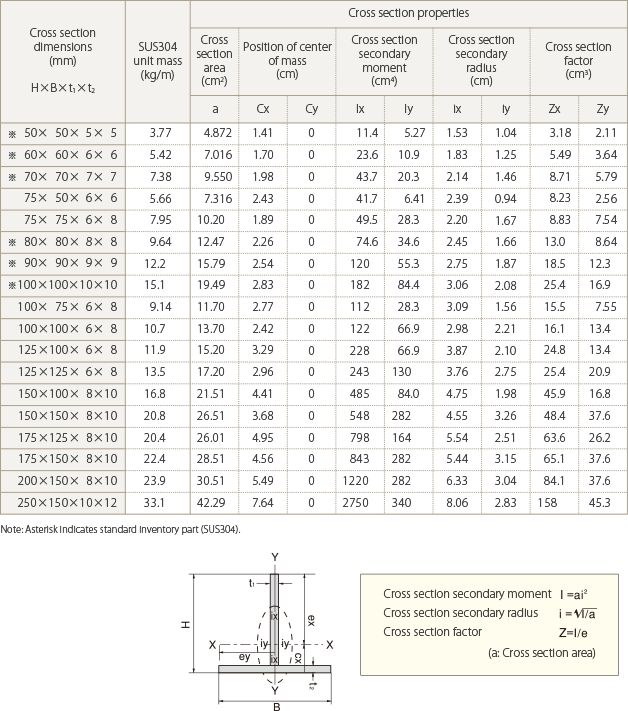

3. Cross section properties (Reference)



Applications

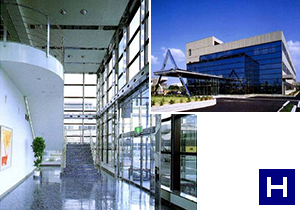

Application Aichi Steel Foundry OfficeGirders,
curtain wall mullions
Field Building construction
Shape Welded H
Type of steel SUS304A
Reason Corrosion resistance, design characteristics

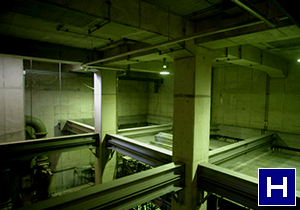

Application Sewage treatment pumping station seismic reinforcement
Field Building construction
Shape Welded H
Type of steel SUS304A
Reason Corrosion resistance, total cost of ownership

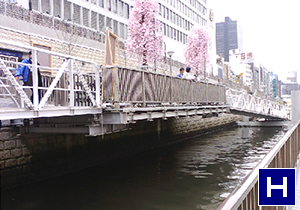

Application Overhanging pier
Field Civil engineering
Shape Welded H
Type of steel SUS304
Reason Corrosion resistance, total cost of ownership

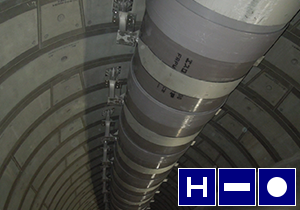

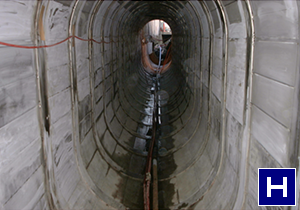

Application Furukawa underground reservoir
ventilation duct support fittings
Field Civil engineering
Shape Welded H, Flat, Round, etc.
Type of steel SUS304
Reason Corrosion resistance

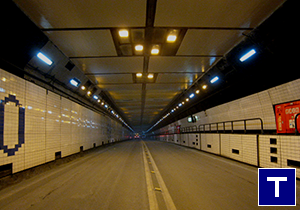

Application Kanmon Tunnel ceiling plate brackets
Field Civil engineering
Shape Welded T
Type of steel SUS304
Reason Corrosion resistance, total cost of ownership
Application Rainwater weir improvement construction: supports
Field Civil engineering
Shape Welded H
Type of steel SUS304
Reason Corrosion resistance, total cost of ownership
