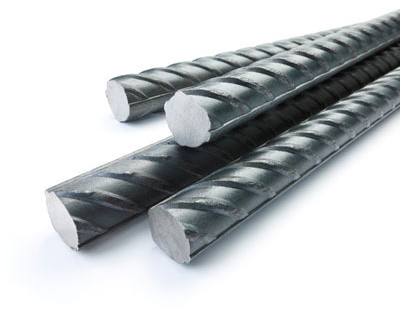

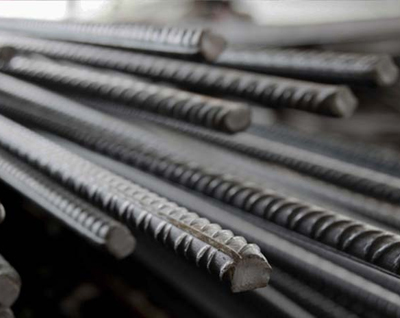

TMT Bar
With rich industrial experience, we are renowned as one of the leading manufacturers and suppliers of excellent quality TMT Steel Bar which is widely used for bridge and building constructions. The offered bar is manufactured by our experienced professional using superior quality steel and modern technology. This TMT Steel Bar is highly appreciated by our clients as it is described as a new-generation-high-strength steel having superior properties such as weld ability, strength, ductility and tensity, which meet the highest industries quality standards.
Features:
- High tensile strength
- Toughness
- Excellent bending ability
- Sturdiness
Technical Specifications:
| Dia(mm) | Area(cm2) | Nominal Wght(Kg/Mtr) | Range Of Wght (Kg/Mtr.) | Nominal Length (Mtr/MT) appx |
| 6 | 0.28 | 0.222 | 0.21-0.24 | 4500 |
| 7 | 0.38 | 0.3 | 0.28-0.32 | 3311 |
| 8 | 0.5 | 0.4 | 0.37-0.42 | 2500 |
| 10 | 0.78 | 0.62 | 0.57-0.660 | 1600 |
| 12 | 1.13 | 0.89 | 0.84-0.93 | 1100 |
| 16 | 2.01 | 1.58 | 1.500-1.66 | 630 |
| 20 | 3.14 | 2.47 | 2.39-2.54 | 400 |
| 22 | 3.8 | 2.99 | 2.9-3.07 | 330 |
| 25 | 4.91 | 3.86 | 3.74-3.97 | 260 |
| 28 | 6.16 | 4.84 | 4.69-5.98 | 200 |
| 32 | 8.04 | 6.32 | 6.13-6.51 | 155 |
| 36 | 10.18 | 7.99 | 7.75-8.23 | 120 |
| 40 | 12.57 | 9.87 | 9.57-10.17 | 100 |
