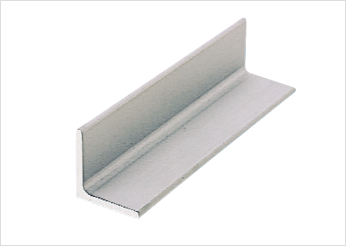

Angle bar
- Supported standards
- JIS G 4317 Hot-formed stainless steel sections
- Type of steel
- SUS304, SUS304L, SUS316, SUS316L, SUS430, etc.
Features

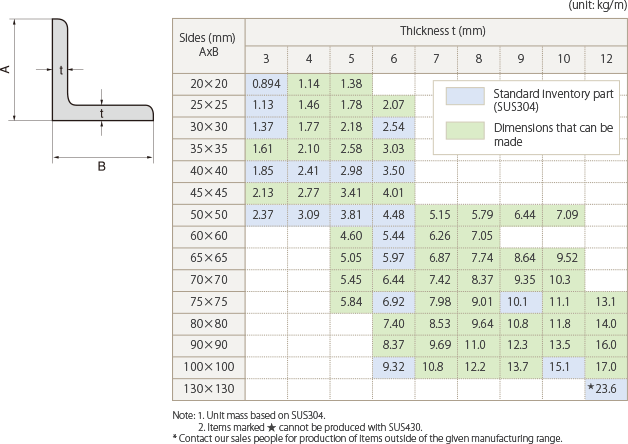

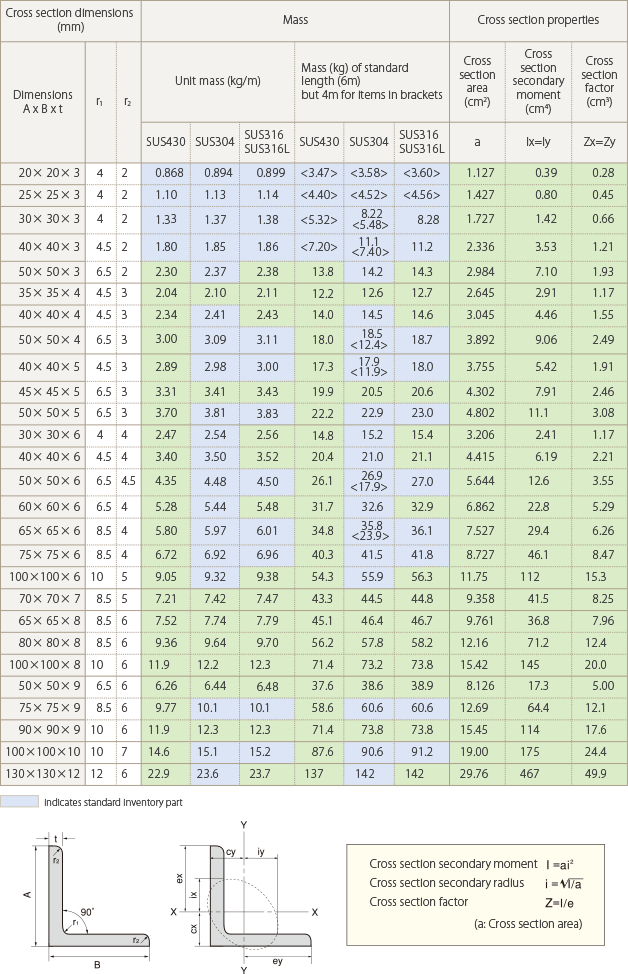

- 1. Product sizes and unit weights
- 2. Product specifications

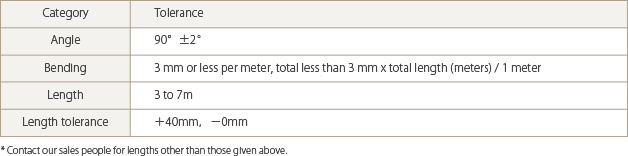

- Dimensional tolerance
Other
- 3. Characteristics of section (Reference)
Applications

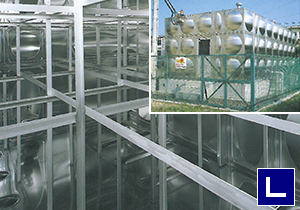

| Application | Water intake tank interior reinforcement |
|---|---|
| Field | Waterworks & Water treatment |
| Shape | Angle |
| Type of steel | SUS304，SUS316 |
| Reason | Corrosion resistance |

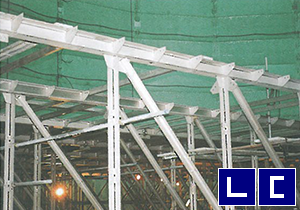

| Application | KAMIOKANDE Water tank reinforcement materials |
|---|---|
| Field | Plant & Factory equipment |
| Shape | Angle, Channel |
| Type of steel | SUS304 |
| Reason | Corrosion resistance |

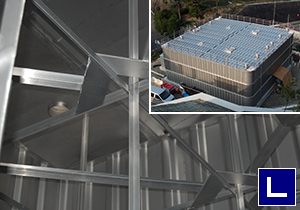

| Application | Umezono Service Reservoir internal reinforcement |
|---|---|
| Field | Waterworks & Water treatment |
| Shape | Angle |
| Type of steel | SUS329J4L |
| Reason | Corrosion resistance |
